Featured Modular Engineering Solutions (Catalog Part 1)
Explore our factory-engineered collapsible, expandable, and modular container architectures optimized for rapid global deployment, high structural load-bearing capacity, and maximum freight efficiency.
1. Macro Industry Trends: The Industrial Evolution of Collapsible & Expandable Housing
The global prefabricated construction industry is undergoing a structural transition toward high-density shipping logistics and rapid-deploy architectural solutions. As urbanization pressures intensify, remote industrial projects expand, and climate-induced emergency response requirements surge, traditional brick-and-mortar methodologies are increasingly constrained by labor shortages, environmental overhead, and extended project delivery timelines. High-Quality Foldable Shipping Container Homes have emerged as the dominant engineering benchmark for enterprise buyers seeking to reconcile spatial agility with structural durability.
Modern foldable container housing deviates fundamentally from early-generation modified ISO ISO intermodal freight boxes. Rather than relying on static corrugated steel walls, contemporary foldable and expandable modular units utilize custom-engineered cold-formed galvanized Q235B/Q355B steel frames integrated with heavy-duty structural hinges, precision weatherboarding, and thermal barrier insulation cores. This evolution enables a 20ft or 40ft structure to collapse into a footprint measuring less than one-fourth of its expanded volume, dramatically optimizing ocean and overland freight logistics.
Logistics Efficiency
By folding down to 350mm–450mm structural height per panel set, a single 40ft High Cube container can ship up to 4 complete 20ft collapsible units or 2 fully equipped double-wing expandable villas.
Rapid Site Handover
Eliminates multi-month field construction. A basic crew of four operators equipped with a standard mobile crane can unfold, level, and anchor a unit within 10 to 15 minutes.
Sustainability & Circularity
High steel recyclability and non-destructive disassembly capability allow container structures to be relocated 10+ times across project lifecycles with minimal material degradation.
2. Technical Architecture & Mechanical Engineering Standards
Achieving structural rigidity and long-term weatherproofing in a folding structural envelope requires sophisticated mechanical joint design. Premium tier B2B suppliers utilize custom manganese-alloy steel hinges sealed with continuous EPDM double-gaskets, mitigating thermal bridging and preventing water ingress under extreme wind-driven rainfall conditions.
Key Material Specifications & Structural Parameters
When evaluating manufacturers, commercial procurement directors must review exact metallurgical and chemical properties rather than superficial dimensions. The table below outlines technical benchmarks for commercial-grade foldable and expandable container units.
| Engineering Component | Standard Market Specification | High-Quality Supplier Benchmark (Prime Spec) | Structural Benefit |
|---|---|---|---|
| Main Frame Steel | Q195 / Light C-Channel Steel | Q235B / Q355B Hot-Dip Galvanized Steel | Resists deformation under high wind & stacking loads |
| Galvanization Layer | 40 - 60 g/m² coating | ≥ 120 - 275 g/m² zinc protection | Prevents rust & structural rot in coastal climates |
| Wall Panel Core | 50mm Standard EPS (10kg/m³) | 50mm/75mm Polyurethane (PU) or Rockwool (120kg/m³) | Superior thermal insulation (R-21+) & Class A fire rating |
| Fold Joint Mechanics | Stamped Carbon Hinges | 304 Stainless Steel / Galvanized Mn-Alloy Hinges | Sustains 500+ fold cycles without hinge failure |
| Floor Structure | 12mm Plywood + PVC Sheet | 18mm Fiber Cement Board + MGO + SPC Flooring | Waterproof, non-combustible, zero-sag load distribution |
| Sealing Gaskets | Basic Silicone / Foam Strip | Dual-Lip Vulcanized EPDM Weather Gaskets | Zero water leakage under 1.5 kPa wind-driven rain pressure |
Structural Mechanics: Expandable vs. Collapsible Z-Folding

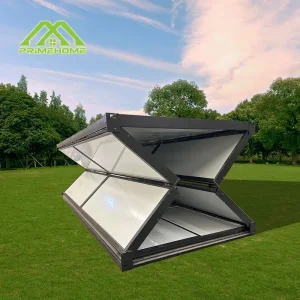

Commercial procurement requires matching the structural layout to the deployment environment. Collapsible Z-folding container homes collapse vertically or horizontally into a flat footprint. They are optimized for rapid-turnaround temporary dormitories, emergency shelters, and construction site offices where maximum speed and unit density per truck are paramount.
Conversely, Double-Wing Expandable Container Houses utilize a center core chassis (housing prefabricated plumbing, kitchenettes, and electrical distribution) flanked by two hinged side wings. Upon unfolding, the floor area expands up to three times the shipping width. This format is widely adopted for residential accessory dwelling units (ADUs), eco-tourism glamping resorts, and temporary field clinics.
3. B2B Procurement Economics: Total Cost of Ownership (TCO) & Supply Chain ROI
For enterprise purchasing officers, EPC contractors, and real estate project developers, initial unit price represents only a fraction of total procurement expenditure. Evaluating a factory's value proposition requires a thorough Total Cost of Ownership (TCO) calculation, factoring in shipping density, site civil works, assembly labor hours, and operational energy efficiency.
1. Ocean Freight Amortization
Shipping a fully assembled 20ft container house incurs high volume-to-weight penalties. By utilizing high-density collapsible packing (4 units per 40ft HQ container), global freight cost per unit is reduced by 60% to 75%, insulating procurement budgets against maritime shipping rate volatility.
2. On-Site Labor Compression
Traditional modular flat-pack containers require 2 to 3 days of skilled labor assembly per unit. Foldable units pre-wired and pre-plumbed at the manufacturing plant reduce on-site labor requirements to under 1 man-hour per unit, enabling rapid deployment in high-wage markets.
3. Foundation & Civil Works
Rigid structural base frames distribute point loads effectively. Foldable units require only basic point-footing concrete piers or screw piles rather than continuous slab foundations, lowering site development expenditures by 40%.
4. Global Compliance, Building Codes & Structural Safety Safeguards
Navigating regulatory approval pathways is a primary operational bottleneck when importing modular housing. High-quality export manufacturers operate under strict international quality management systems and build according to specific regional regulatory frameworks.
North American Standards (IBC / HUD / UL)
Compliance with the International Building Code (IBC) for structural integrity, snow loading (up to 1.5 kN/m²), and wind uplift resistance. Electrical pre-wiring utilizes UL-listed conductors, GFCI outlets, and NEMA-rated breaker enclosures operating at 110V/220V 60Hz.
European Union Norms (CE / EN 1090)
Execution of structural steel according to EN 1090-2 (EXC2 level). Wall panels adhere to EN 13501-1 fire reaction standards. Thermal performance meets strict EU energy conservation requirements through thermal-break framing and argon-filled double glazing.
Australia & Oceania (AS/NZS Codes)
Designed for high solar exposure and extreme storm conditions. Structural calculations comply with AS/NZS 1170 for structural design actions and AS/NZS 3000 for electrical installations, featuring corrosion-resistant C3/C4 protective paint finishes.
Structural reliability is verified through Finite Element Analysis (FEA) testing. Quality manufacturers simulate real-world environmental stressors, ensuring units maintain structural integrity under Zone 8 seismic events and sustained wind forces exceeding 120 km/h (Category 12 typhoon resistance).
5. Future Technical Roadmap (2025–2030): Next-Gen Smart Modular Integration
The future of foldable container housing lies at the intersection of material science, photovoltaic autonomy, and automated smart-building operations. Leading OEM/ODM manufacturing hubs are moving beyond static structures toward fully integrated smart modular assets.
BIPV Roof Integration
Embedding ultra-lightweight flexible Building-Integrated Photovoltaic (BIPV) solar panels directly into folding roof sections, enabling instant off-grid power generation upon deployment without requiring separate panel mounting frames.
Aerogel & Phase-Change Insulation
Integrating 10mm silica aerogel blankets into wall assemblies, achieving R-values comparable to 100mm traditional insulation while preserving interior living space and reducing overall shipping weight.
Automated Hydraulic Unfolding
Replacing manual crane lifts with self-contained 24V electro-hydraulic lifting legs and automated hinge actuators, allowing single-operator deployment via wireless remote control.
6. Technical & Procurement FAQ (Frequently Asked Questions)
In-depth answers addressing structural engineering, international shipping, foundation requirements, and factory customization capabilities.
Industrial Container Product Series (Catalog Part 2)
Review our additional range of specialized modular buildings, including staff dormitories, emergency response housing, mobile sanitary units, and expandable villas.
